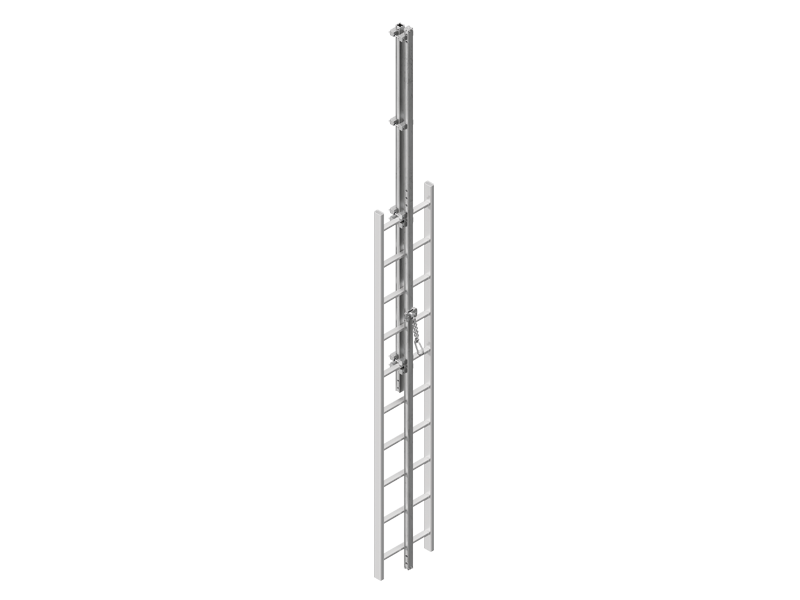

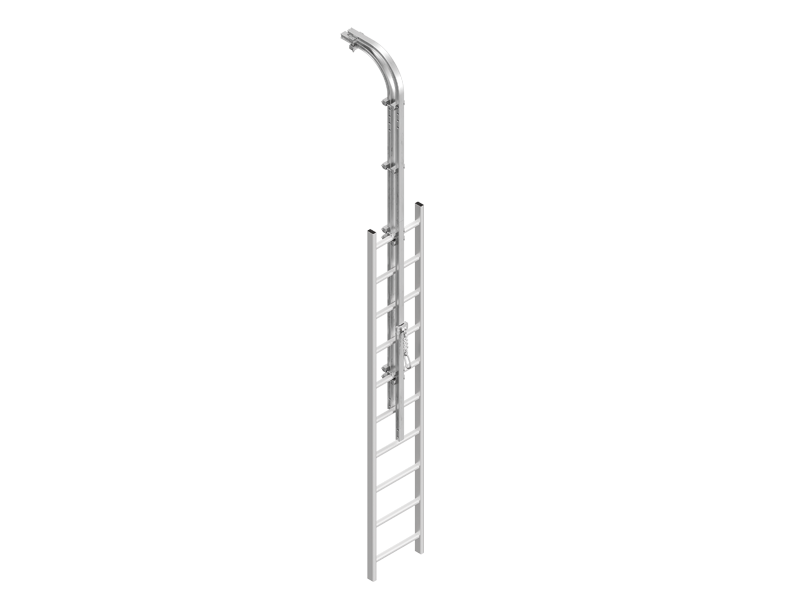

SISTEMA A BINARIO PER USO VERTICALE SU SCALA

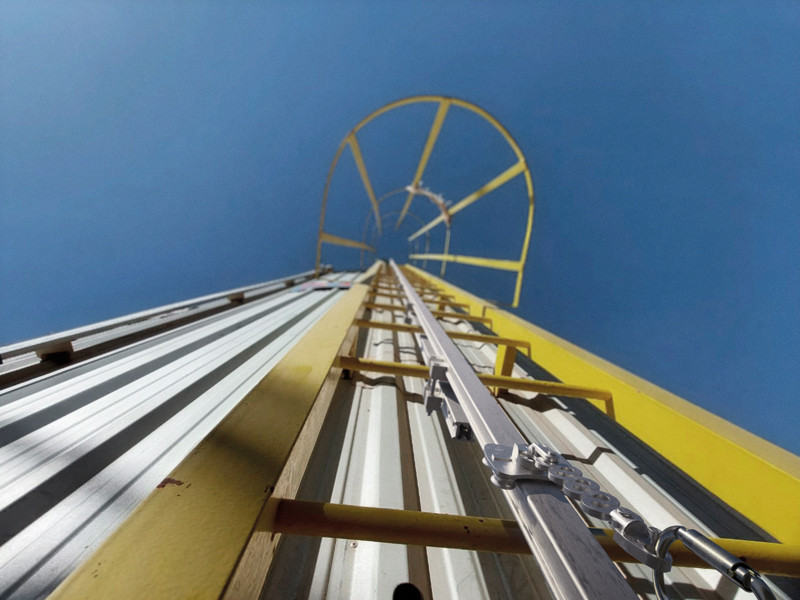

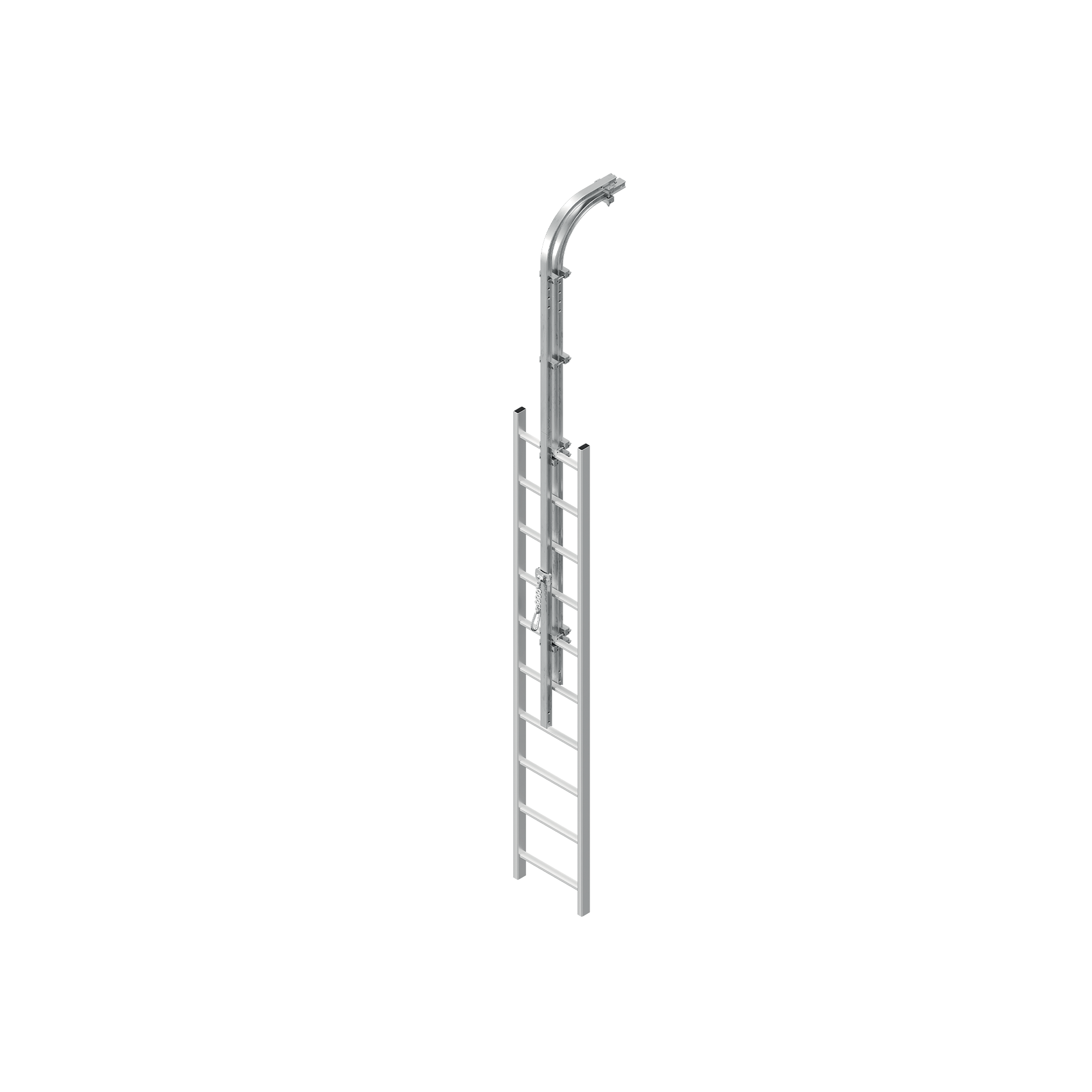

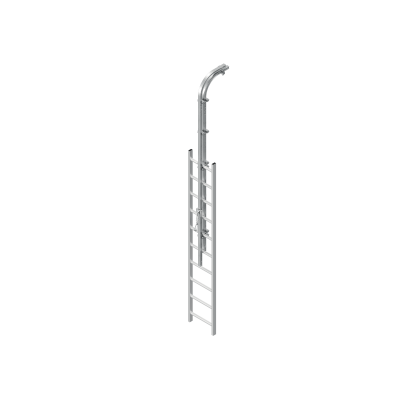

H-RAIL VERTICAL
Coming Soon
Il dispositivo scorrevole con ammortizzatore integrato permette salita e discesa continua, sicura e confortevole.
Gli elementi in acciaio inossidabile AISI 304 e in lega di alluminio offrono un'eccellente resistenza alla corrosione.
Il sistema è intuitivo e composto da pochi elementi di semplice installazione.
Documentazione
Scheda Tecnica
|
|---|
BINARIO
| CODICE | descrizione | materiale | B
[mm]
|
H
[mm]
|
L
[mm]
|
pz. |
|---|---|---|---|---|---|---|
| RAIL3000 | 3m aluminium rail | EN AW 6063 (T6) | 49 | 41 | 3000 | 1 |
| RAILC90 | 90° curved rail | EN AW 6063 (T6) | 475 | 41 | 475 | 1 |
| RAILC120 | 120° curved rail | EN AW 6063 (T6) | 336 | 41 | 538 | 1 |
| RAILC135 | 135° curved rail | EN AW 6063 (T6) | 257 | 41 | 536 | 1 |
| RAILC150 | 150° curved rail | EN AW 6063 (T6) | 178 | 41 | 512 | 1 |
TARGAVERTxy
| CODICE | descrizione | pz. |
|---|---|---|
| TARGAVERTIT | Label plate for VERTIGRIP systems IT | 1 |
| TARGAVERTDE | Label plate for VERTIGRIP systems DE | 1 |
| TARGAVERTEN | Label plate for VERTIGRIP systems EN | 1 |
| TARGAVERTES | Label plate for VERTIGRIP systems ES | 1 |
| TARGAVERTFR | Label plate for VERTIGRIP systems FR | 1 |
| TARGAVERTPT | Label plate for VERTIGRIP systems PT | 1 |
| TARGAVERTRU | Label plate for VERTIGRIP systems RU | 1 |
| TARGAVERTCS | Label plate for VERTIGRIP systems CS | 1 |
| TARGAVERTDA | Label plate for VERTIGRIP systems DA | 1 |
| TARGAVERTEL | Label plate for VERTIGRIP systems EL | 1 |
| TARGAVERTET | Label plate for VERTIGRIP systems ET | 1 |
| TARGAVERTFI | Label plate for VERTIGRIP systems FI | 1 |
| TARGAVERTHR | Label plate for VERTIGRIP systems HR | 1 |
| TARGAVERTHU | Label plate for VERTIGRIP systems HU | 1 |
| TARGAVERTIS | Label plate for VERTIGRIP systems IS | 1 |
| TARGAVERTJA | Label plate for VERTIGRIP systems JA | 1 |
| TARGAVERTLT | Label plate for VERTIGRIP systems LT | 1 |
| TARGAVERTLV | Label plate for VERTIGRIP systems LV | 1 |
| TARGAVERTNL | Label plate for VERTIGRIP systems NL | 1 |
| TARGAVERTNO | Label plate for VERTIGRIP systems NO | 1 |
| TARGAVERTPL | Label plate for VERTIGRIP systems PL | 1 |
| TARGAVERTRO | Label plate for VERTIGRIP systems RO | 1 |
| TARGAVERTSK | Label plate for VERTIGRIP systems SK | 1 |
| TARGAVERTSL | Label plate for VERTIGRIP systems SL | 1 |
| TARGAVERTSV | Label plate for VERTIGRIP systems SV | 1 |
| TARGAVERTTR | Label plate for VERTIGRIP systems TR | 1 |
| TARGAVERTZH | Label plate for VERTIGRIP systems ZH | 1 |
| TARGAVERTAR | Label plate for VERTIGRIP systems AR | 1 |
SUPPORTO
| CODICE | descrizione | pz. | |
|---|---|---|---|
| RAILVBRA | New | - | 1 |
